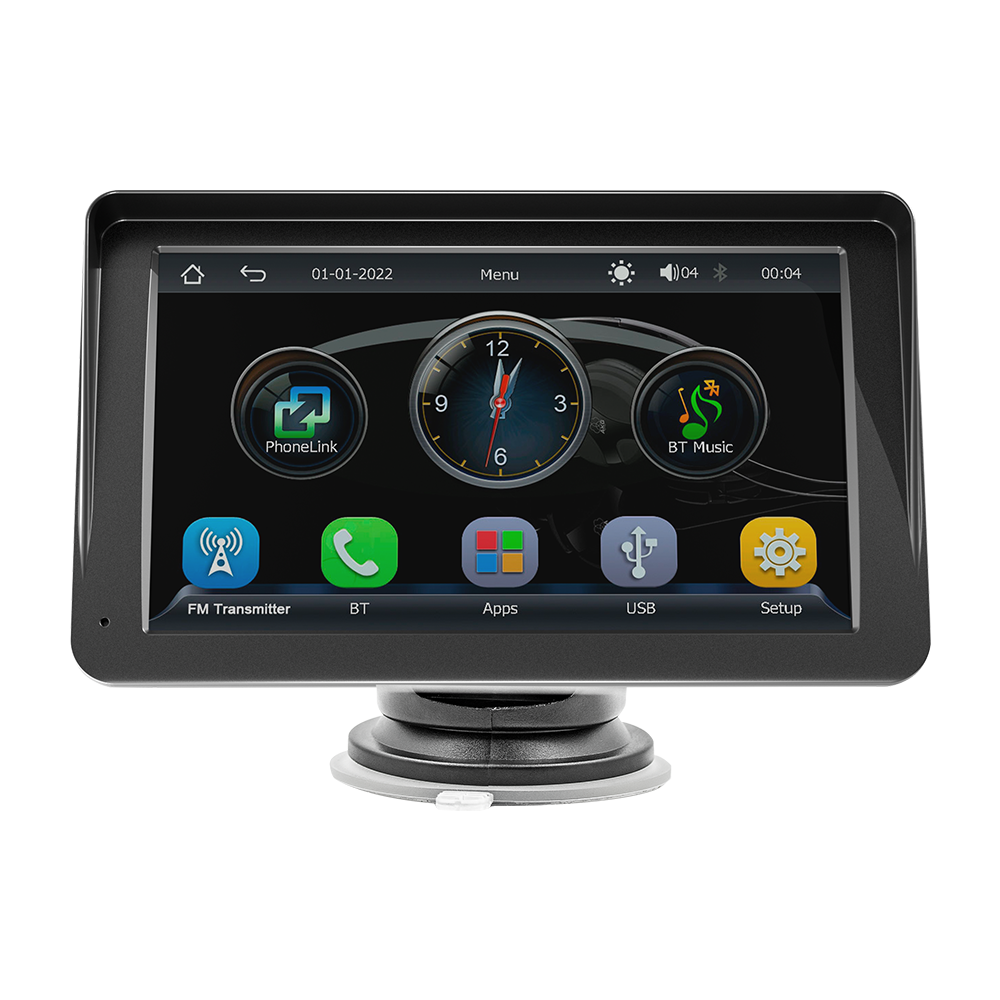

7 Inch Portable CarPlay Android Auto Car Radio Multimedia Video Player Touch Screen with USB AUX for Rear View Camera

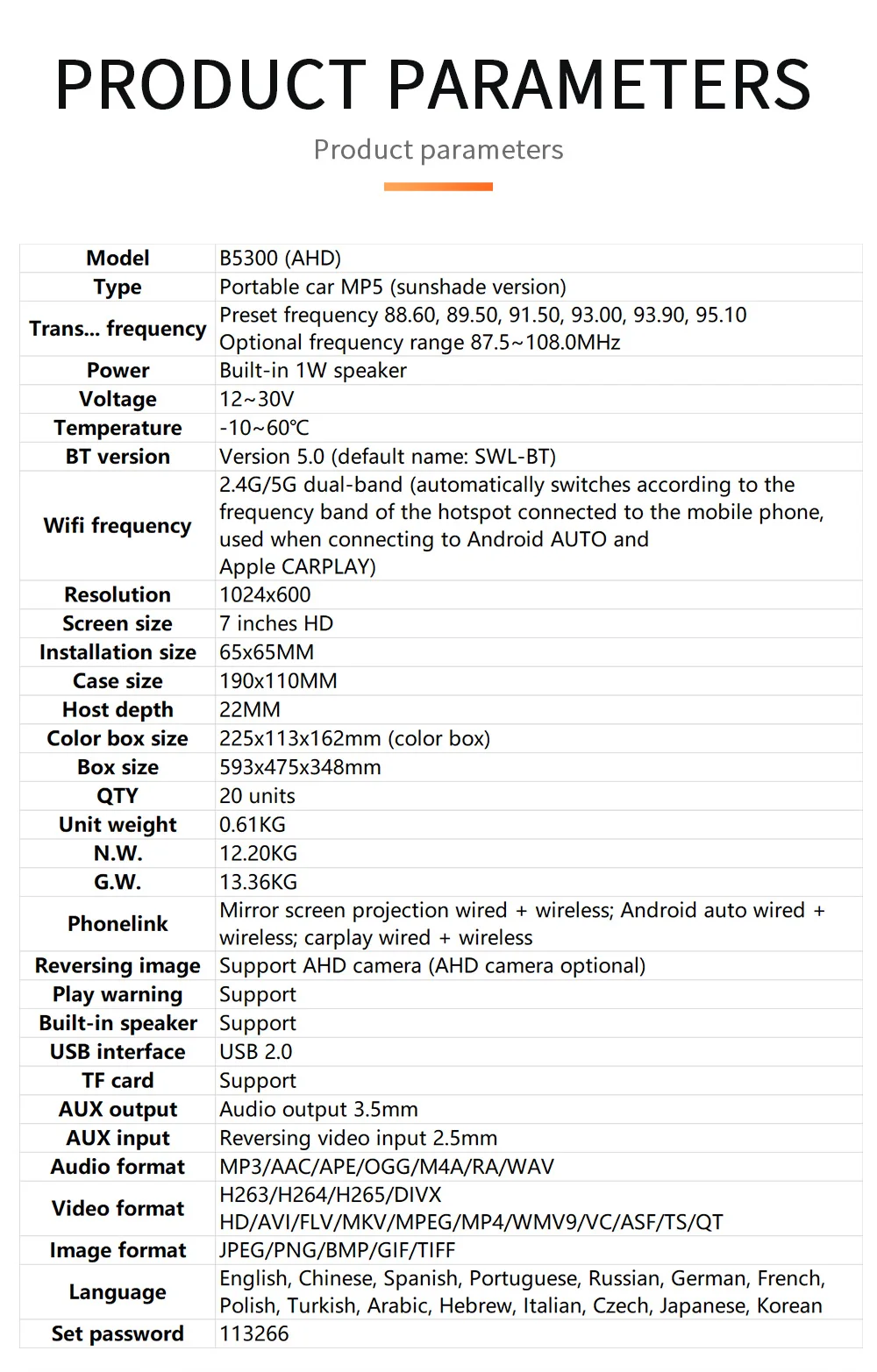

Basic parameters
Model: B5300 (AHD)
Type: Portable car MP5 (sunshade model)
System: Allwinner melis system
Software solution: F133

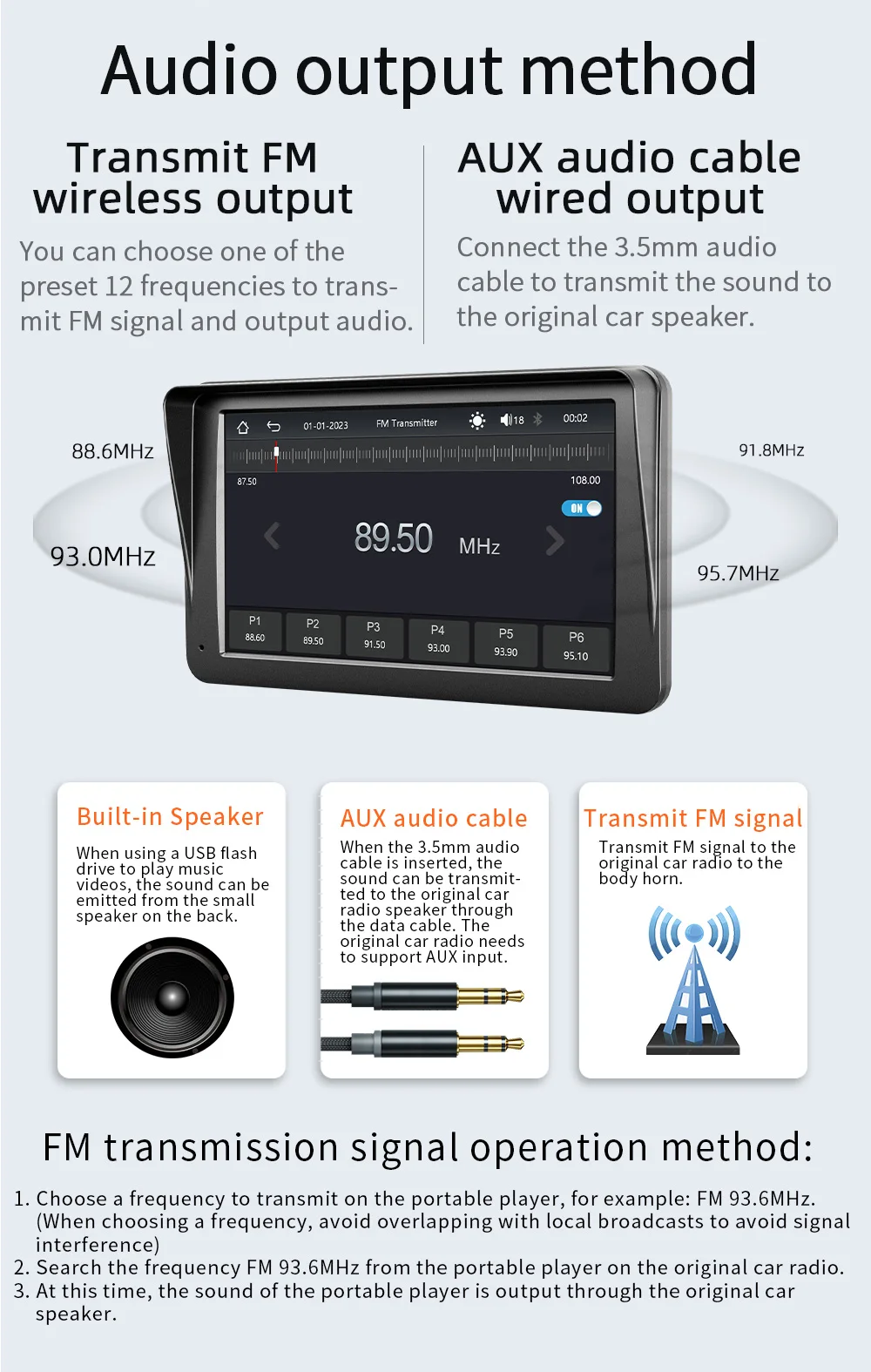

Radio transmission frequency: Preset frequency 88.60, 89.50, 91.50, 93.00, 93.90, 95.10 Optional frequency range 87.5~108.0MHz
Radio transmission IC: AB5301B
Amplifier IC: CS8571E
Output power: Built-in 1W speaker

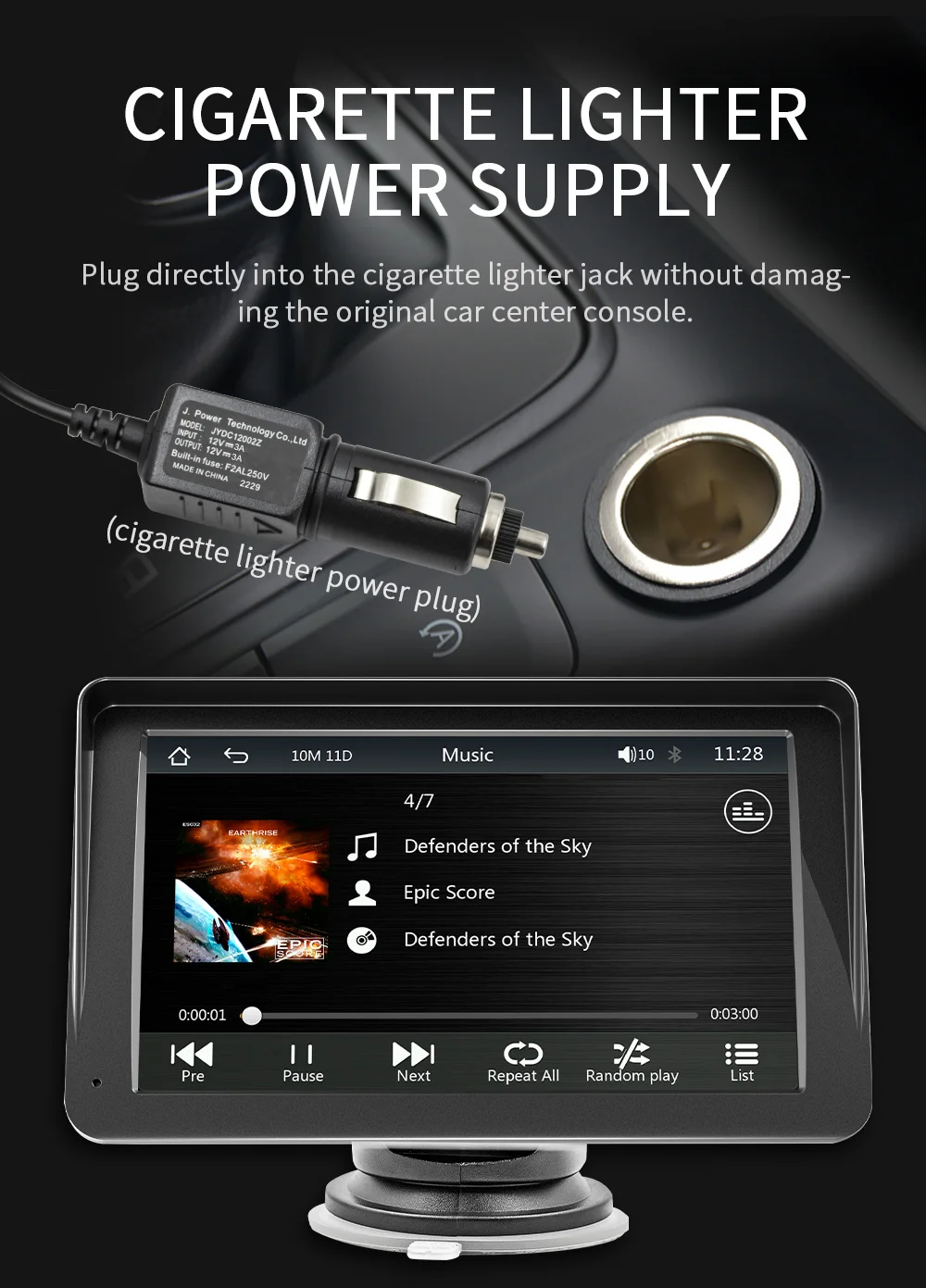

Working voltage: 12~30V
Working temperature: -10~60℃

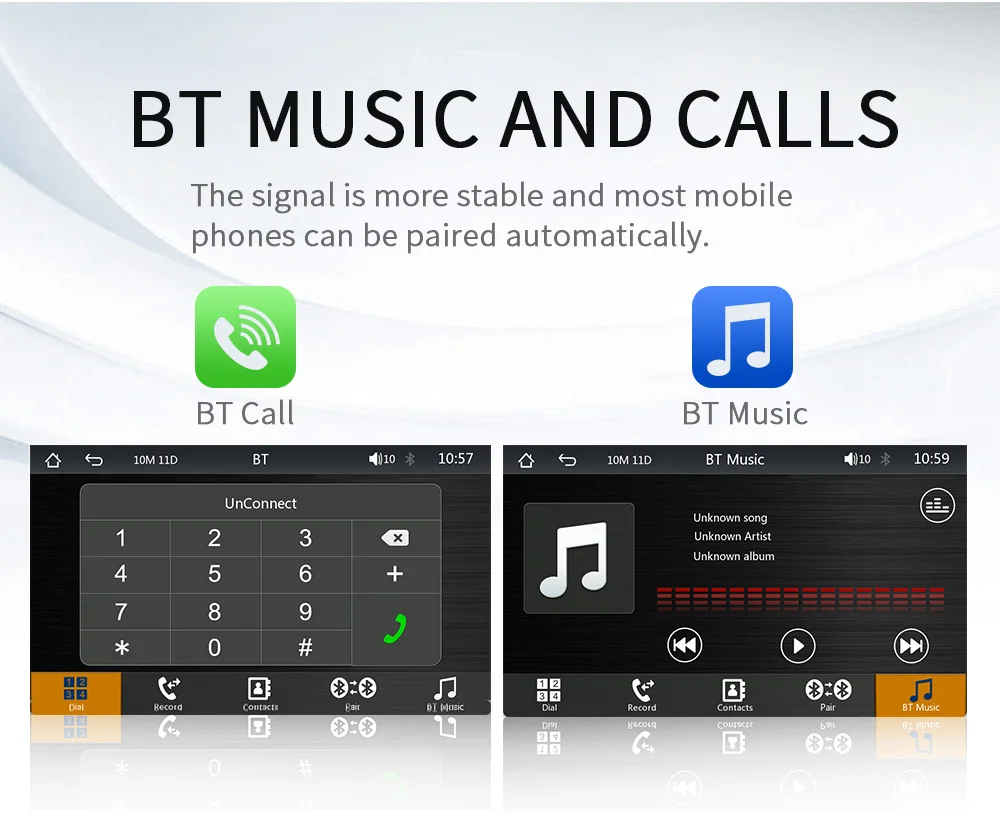

Bluetooth version: Version 5.0 (default name: SWL-BT)
Wifi frequency: 2.4G/5G dual-band (automatically switches according to the frequency band of the hotspot connected to the mobile phone, used when connecting to Android AUTO and Apple CARPLAY)
Performance parameters
CPU: F133
Running memory: 1Gbit DRAM
Display resolution: 1024×600
Screen size: 7 inches HD
Dimension parameters
Installation size: 65x65MM
Case size: 190x110MM
Host depth: 22MM
Color box size: 225x113x162mm (color box)
Box size: 593x475x348mm
Number of units in a box: 20 units
Weight parameters
Weight per unit: 0.61KG
Net weight of box: 12.20KG
Gross weight of box: 13.36KG
Function parameters
Mobile phone interconnection: Support

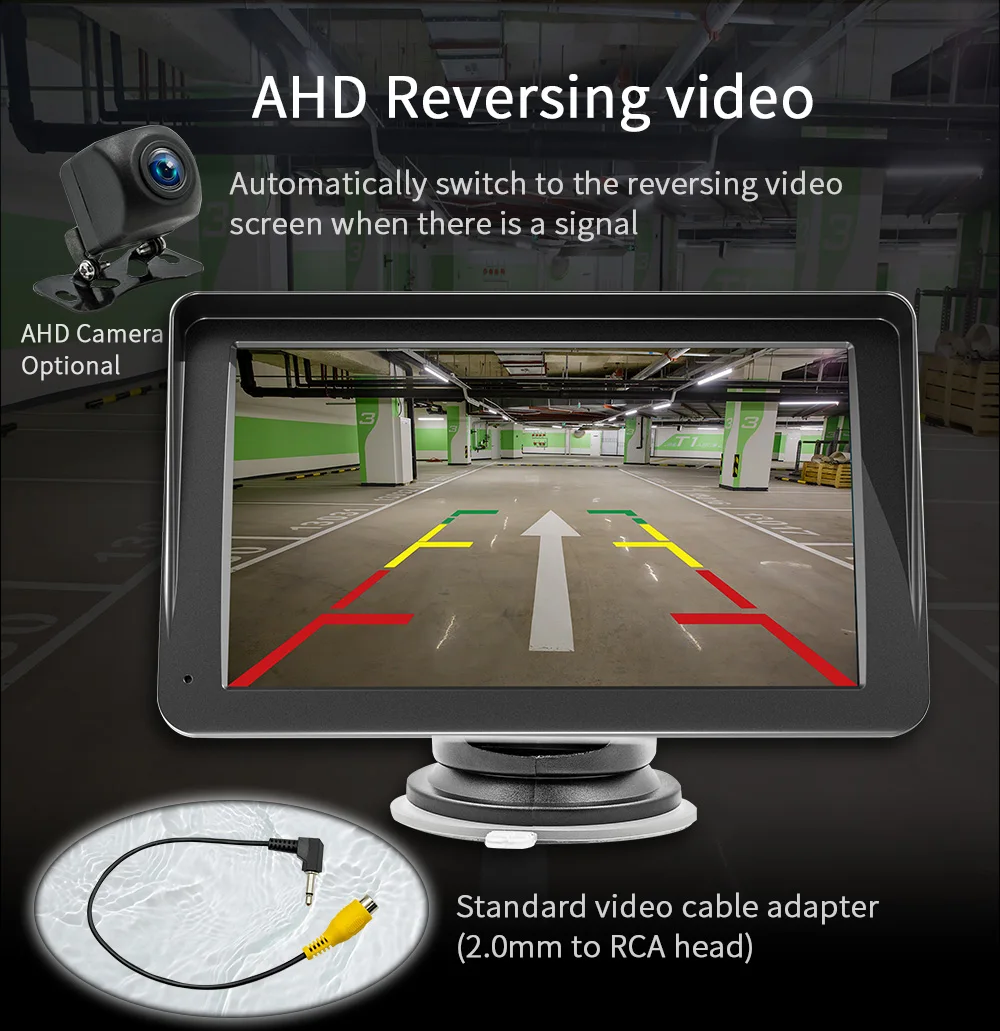

Reversing image: Support AHD camera (AHD camera optional)
Play video warning: Support
Built-in speaker: Support

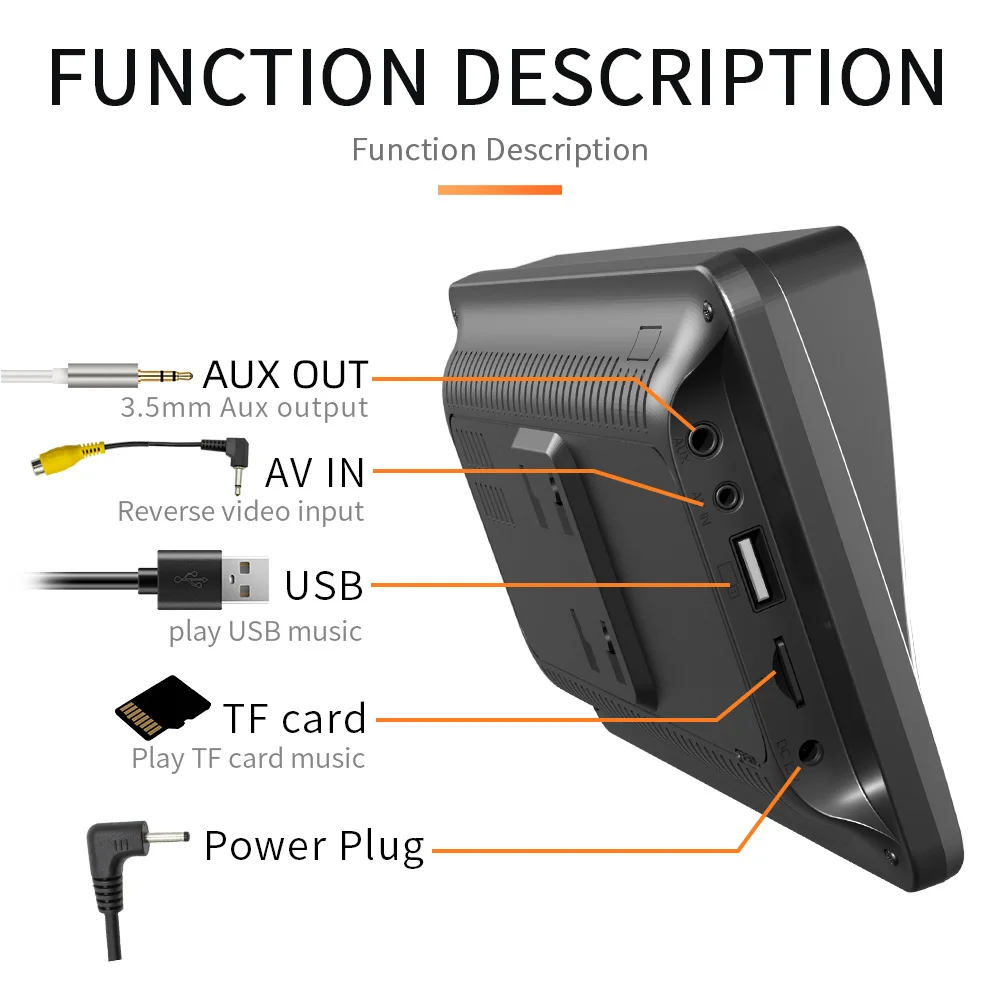

USB interface: USB 2.0
TF card: Support
AUX port parameters
Audio output: Support
Reversing video input: Support
Format parameters
Audio format: MP3/AAC/APE/OGG/M4A/RA/WAV
Video formats: H263/H264/H265/DIVX HD/AVI/FLV/MKV/MPEG/MP4/WMV9/VC/ASF/TS/QT
Image formats: JPEG/PNG/BMP/GIF/TIFF
Language parameters
English, Chinese, Spanish, Portuguese, Russian, German, French, Polish, Turkish, Arabic, Hebrew, Italian, Czech, Japanese, Korean
Other parameters
Factory password: 113266
