Dash Cam DVR Supports 24-Hour Parking Monitoring Recorder Wide-angle 1080P Camera Rearview Camera
Features And Specifications:
▶Installation Type: Rearview Mirror, suitable for all vehicles with mirror
▶Screen(Display) Size: 9.66 Inch IPS Touch Screen
▶Chipset(Processor/CPU): Generalplus
▶Camera Sensor: Front 2MP + Rear 2MP
▶Camera Lens: Front (6 Glass +170 Degree Angle + F1.8 Aperture) Rear (4 Glass + 140 Degree Angle + F2.2 Aperture)
▶Video Resolution: Front: 1920*1080P@30FPS; Rear: 1920*1080P@25FPS
▶Photo Resolution: 12M
▶Video Code: H.264
▶Battery: Built-In (Built-in battery is very small, can not support working, only for save time&setting, please use original power charger when working)
▶OSD Languages: Russian, English, Hebrew, Chinese, French, Turkish, Spanish, Japanese, Arabic, Korean, polish, Lithuanian, Hungarian, Italian, Portuguese, German, Czech, Slovak, Dutch, Romanian, Greek
▶Basic Features: G-sensor,Resolution,Digital Zoom,Frequency,Stream Media,Motion Detection,Cycle Recording,Screen Saver,Time&Date Display, Microphone, Boot Sound,Key Volume,Setting Guideline,Back camera mirror,Back camera flip,In-car camera mirror,In-car camera flip,With Rearview Mirror, With Ruler, Anti Surge Voltage Impact, Waterproof, Anti Fog, Anti Vibration, Real Time Surveillance, Cyclic Recording, Automatic White Balance, WDR,Time-lapse video Infrared light etc
▶Memory Card: Micro SD Card, class 10 and 32GB to 128GB (Not included)
▶Rear Camera Upgrade: Support max 10 meters cable Rear Camera
▶Add Features: Night Vision, 2 Split Screen

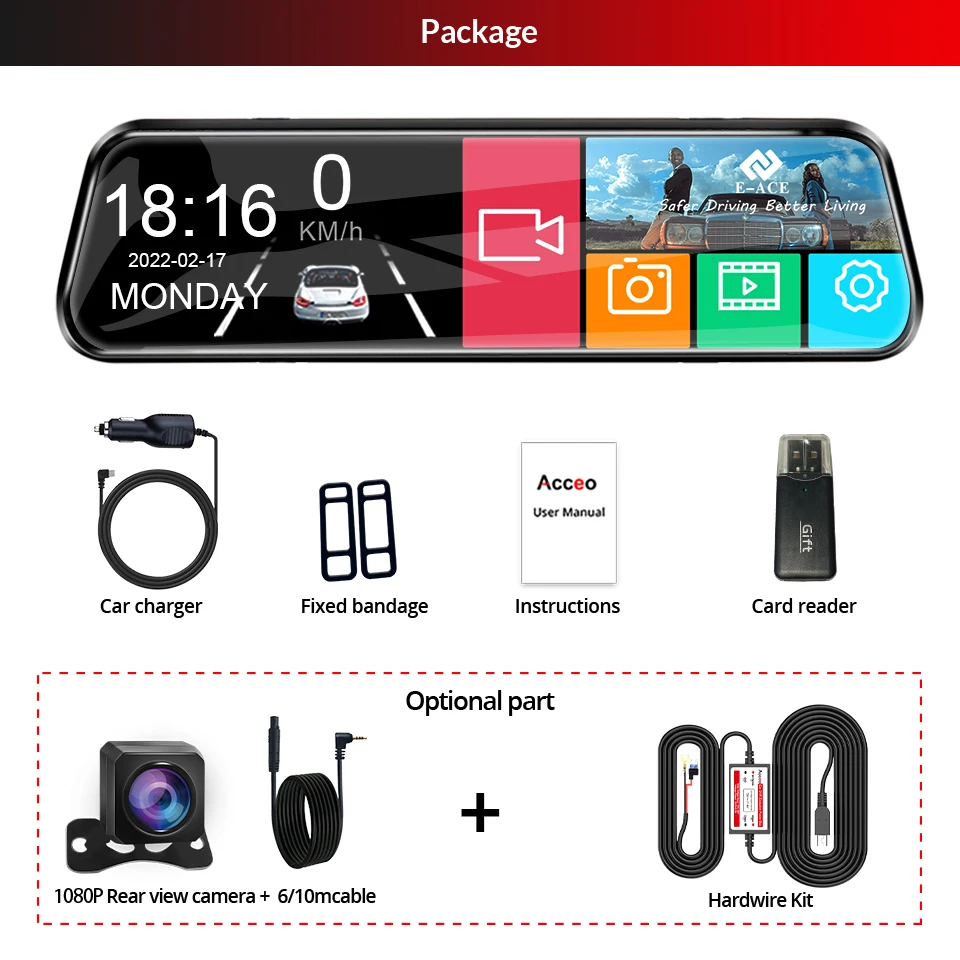

Packing List
▶1 x Packaging box
▶1 x DVR Mirror
▶1 x Power charger
▶1 x User manual
▶2 x Bandages
▶1 x USB Card Reader (Gift)
▶1 x Rearview Camera With 6 Meters Cable(Optional)
▶1 x Rearview Camera With 10 Meters Cable(Optional)
▶1 x Hardwire Kit For 24H Parking Monitoring(Optional)
▶1 x Real Class 10 High Speed TF Card(Optional)
Pay Attention
➤About 24h Monitoring:
The DVR is only compatible with cars that have a 12V power supply. A 24V power supply will burn the motherboard. If you want to use 24V, please add 24V to 12V Converter(HWK).
➤About Video :
Our Car DVR is FHD 1080P Video Recorder,must use high quality Class 10 TF Card, any low quality/low speed TF card all can’t support our DVRs work normally, if you can’t make sure you have good TF Card,please buy our Original TF Card together.

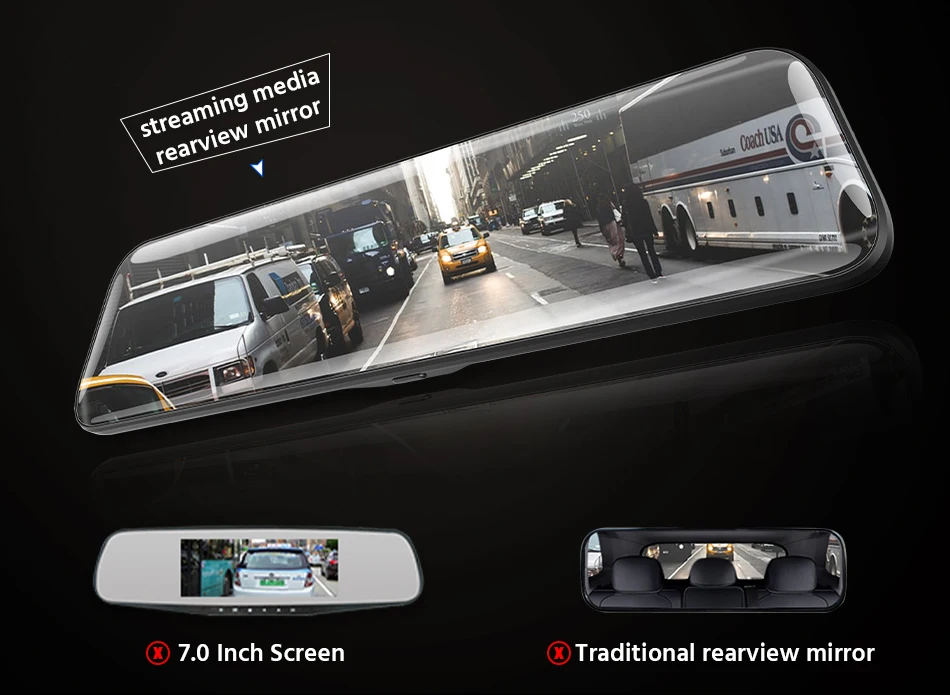

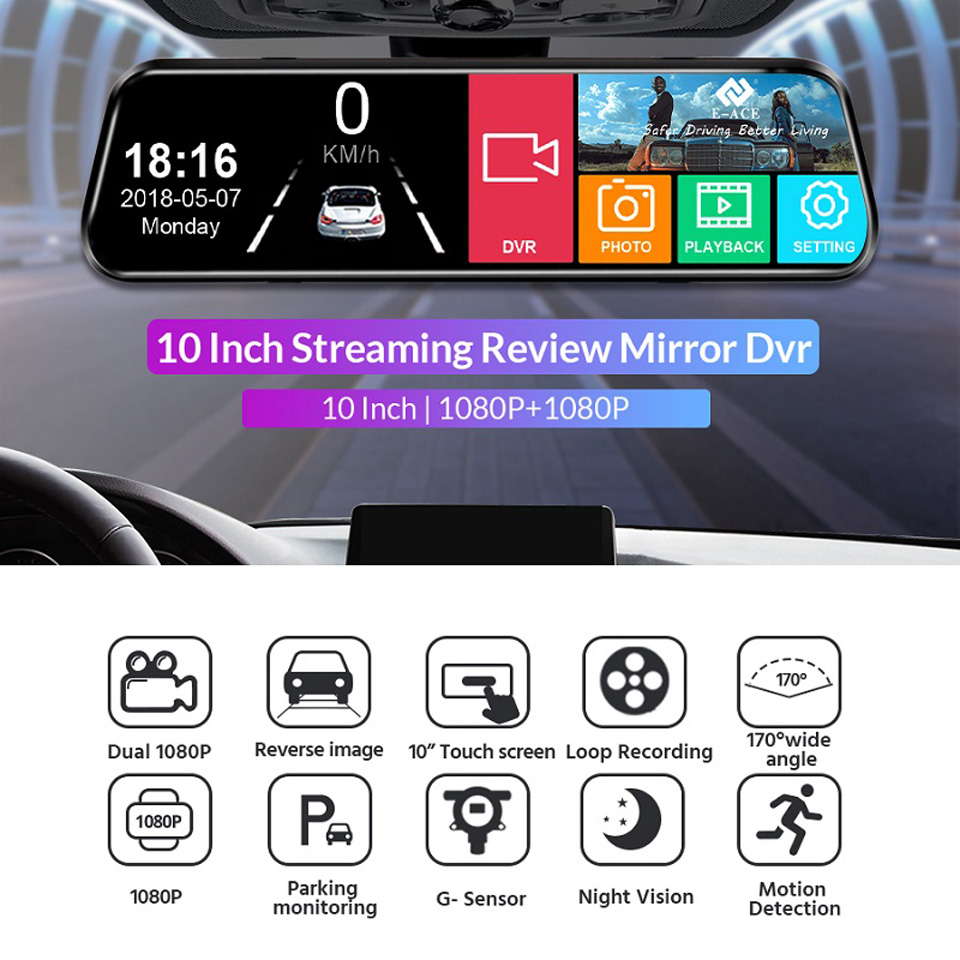

Streaming Media DVR Mirror
Streaming media rearview mirror use full screen instead of original reaview mirror. Display rear image of vehicle on screen in real time through camera. It is not affected by obstacles or natural weather.

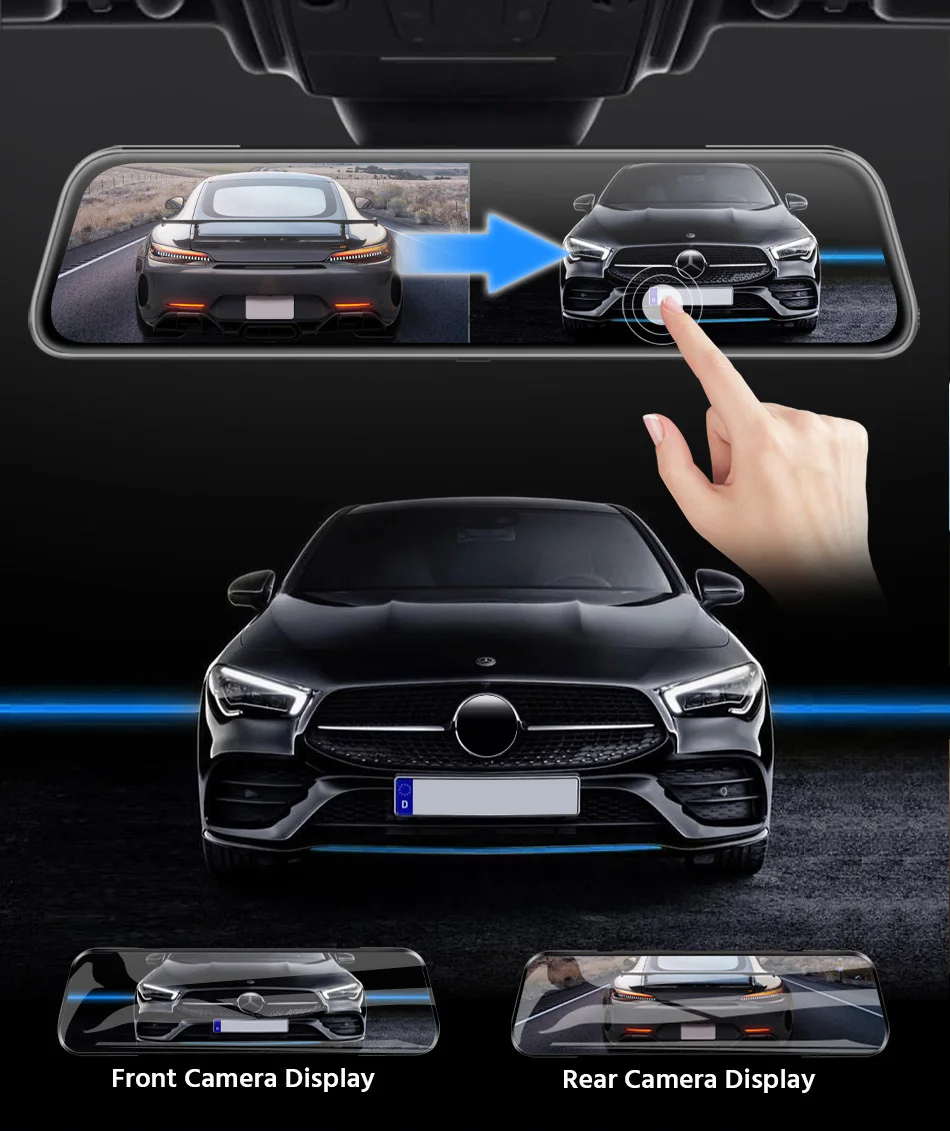

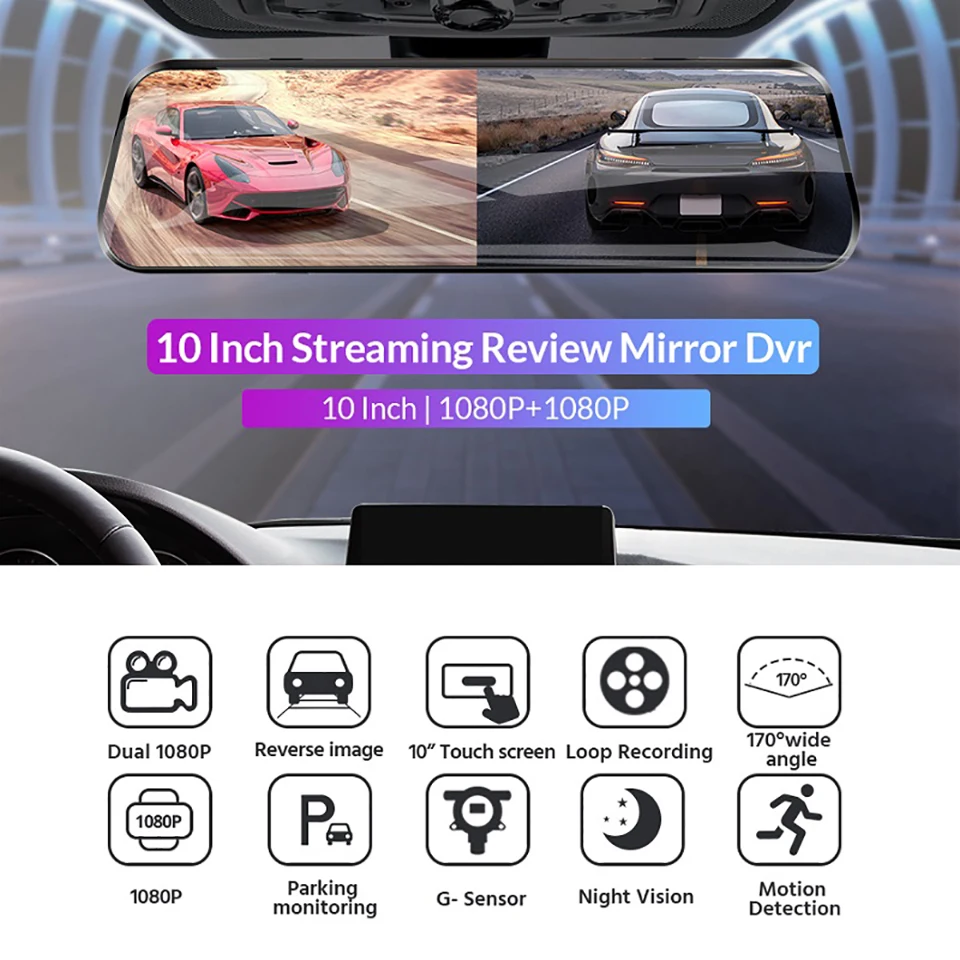

1:1 Split Screen
1:1 split screen design to switch front and rearview recording, big screen and clearly and ersily to check rear view.Touch screen to switch to front camera,back camera.

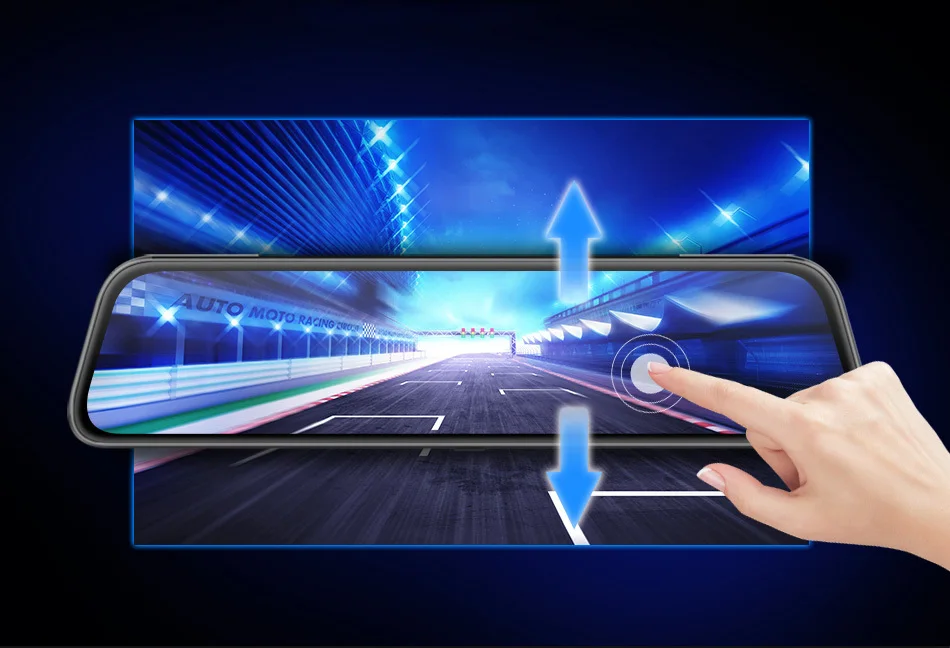

Angle of Wiew Adjustable
Move the screen up or down to get more view. You can adjust the appropriate angle of view by long pressing the screen and moving your finger up and down, Gently swipe to switch views.

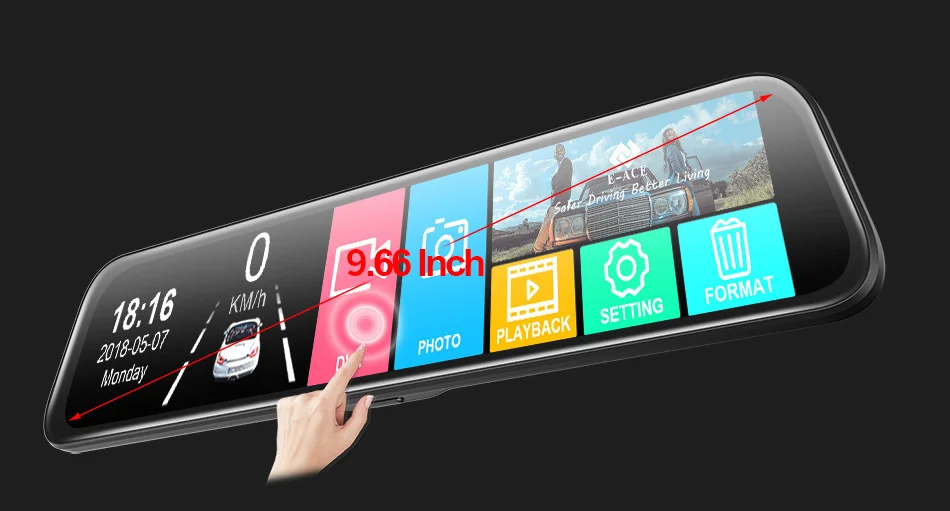

9.66 Inch Touch Screen Display
9.66 inch touch screen, more convenient to operate, you can very fast operation of the car camera, so that you are safer in driving.

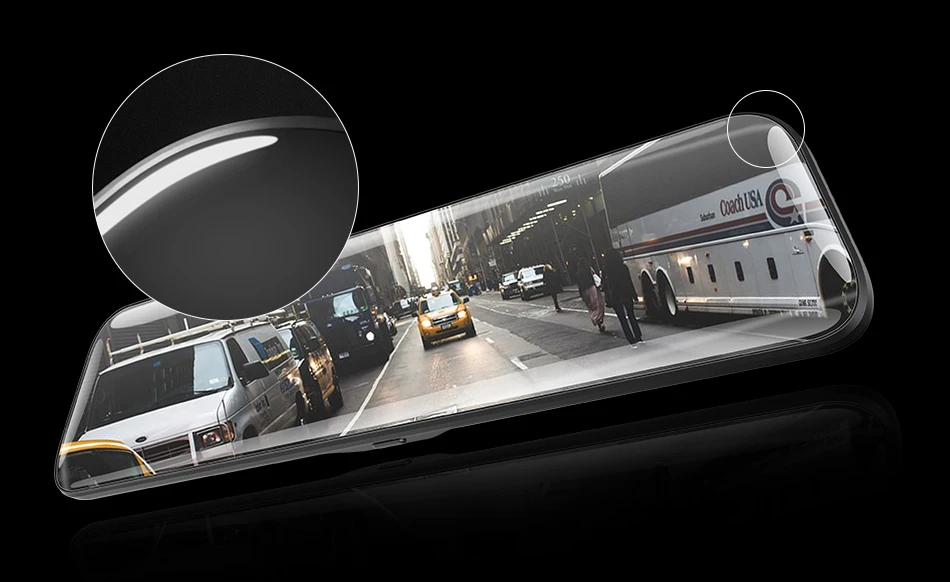

2.5D Curved Surface Screen
2.5D curved glass design,scratch-resistant ,anti-glare,anti-fingerprint.

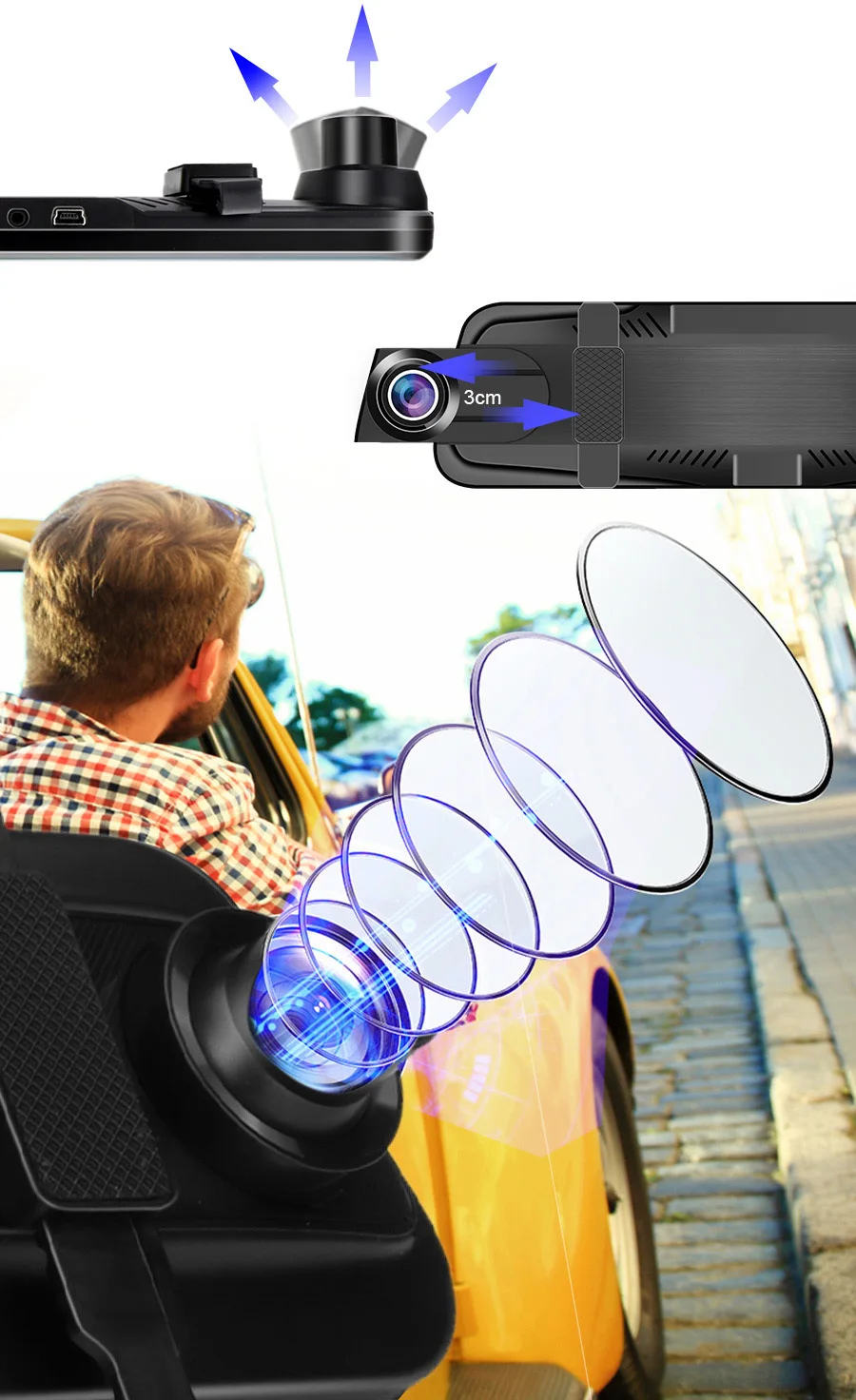

6 Glass HD Lens
Flexible front camera, can be slight adjust the lens up and down and left and right. And 6 glass HD lens , through the most, too dark, the screen of the active exposure adjustment, which is more detailed picture details, the image clearer.
Full HD 1080P Video Quality
Higher quality images help to identify vital details such as license plates,driver actions and road features which may prove your innocence.

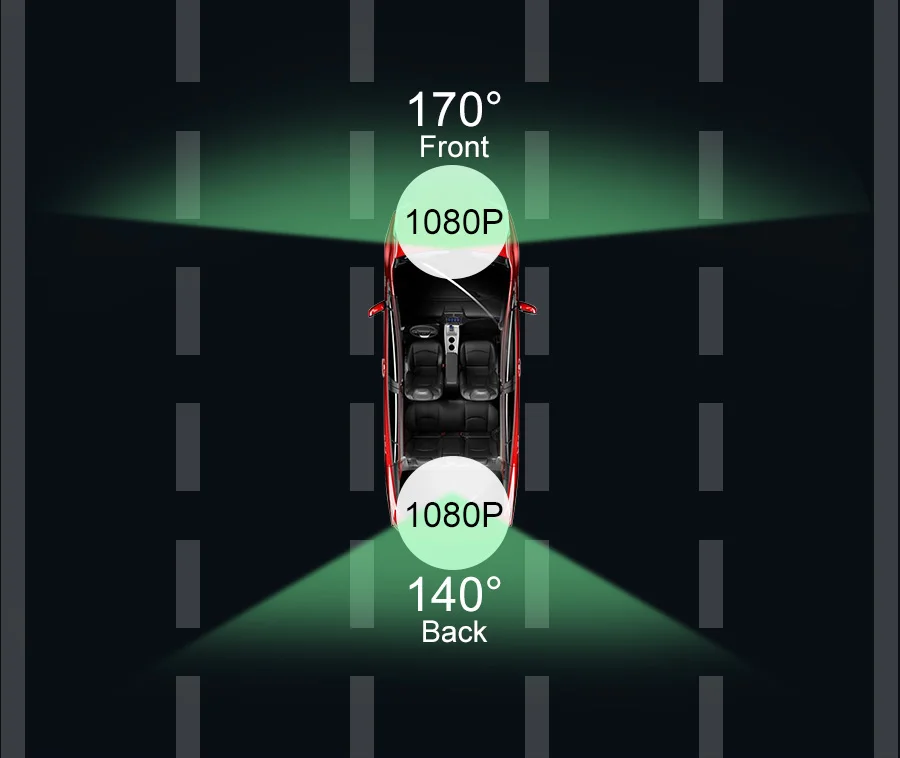

Dual Camera Simultaneously Recording
This Car DVR has cameras that allows for simultaneously recording videos from two different angles.

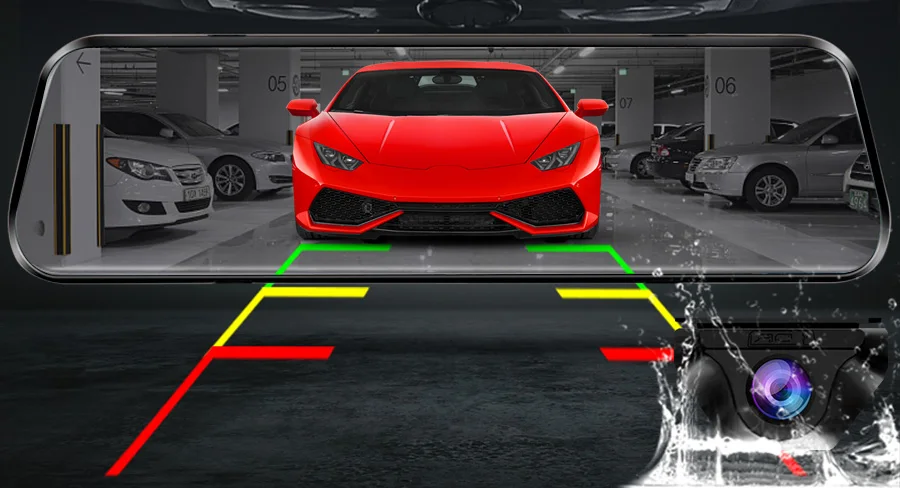

Real-time Display Reverse Parking view
Smart rear view angle switch between driving and parking.You could see all further vehicles and objects clearly behind. you while real-time driving and it will switch the rear view camera automatically to give a closer backup image when parking.
More Features
Parking Monitor
If Dvr be shocked by any external forces. like thief when parking, it will turn on to record automatically.（Note: Car Dvr built-in battery can’t support work for long time, if you want 24 hours Parking Monitor, please buy our Transformer Cable Line or OBD Cable.）
Use the Hardwire Kit to not occupy the cigarette lighter interface.
First, connect the negative pole(black line) of the Hardwire Kit to the ground of the car fuse box;
Secondly, if you want to continue monitoring after parking (the DVR works 24 hours), connect the positive pole(red line) of the Hardwire Kit to the BAT interface of the car fuse box;
If you want to stop monitoring after parking (the DVR does not work after parking), connect the positive pole of the Hardwire Kit to the fuse box ACC interface.
Wide Dynamic Range(WDR)
WDR technology can achieve very perfect video and image quality, regardless of whether the outside light is too bright or too dark.
Picture-in-picture Display

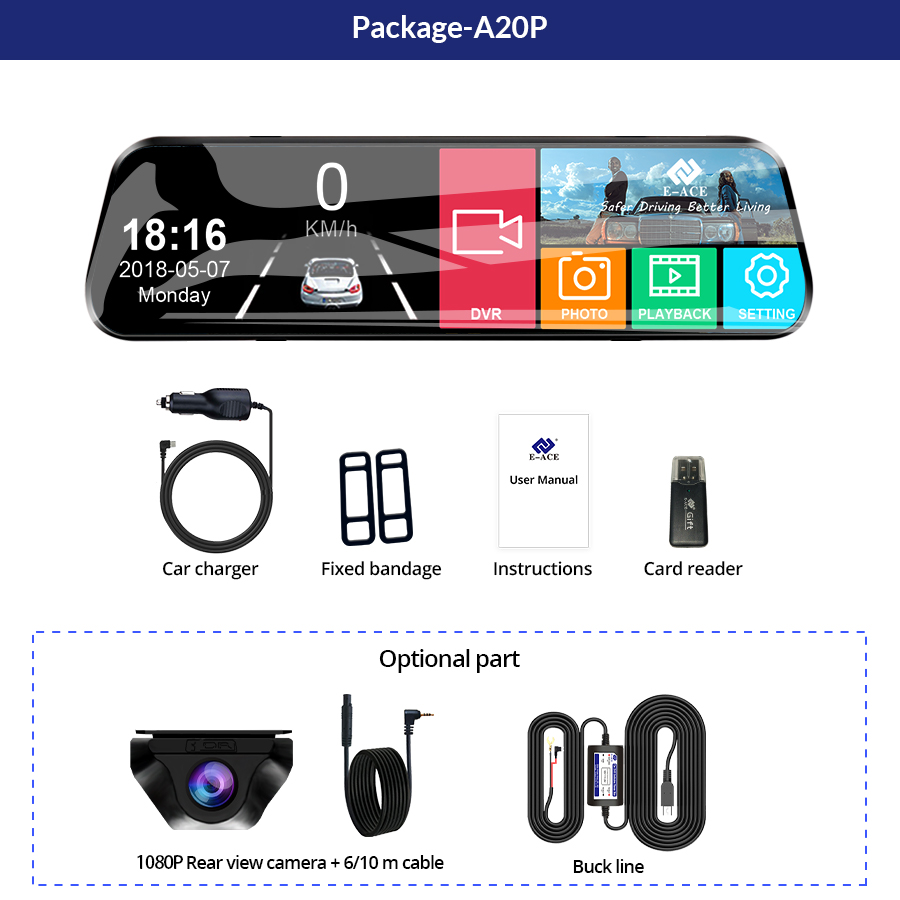

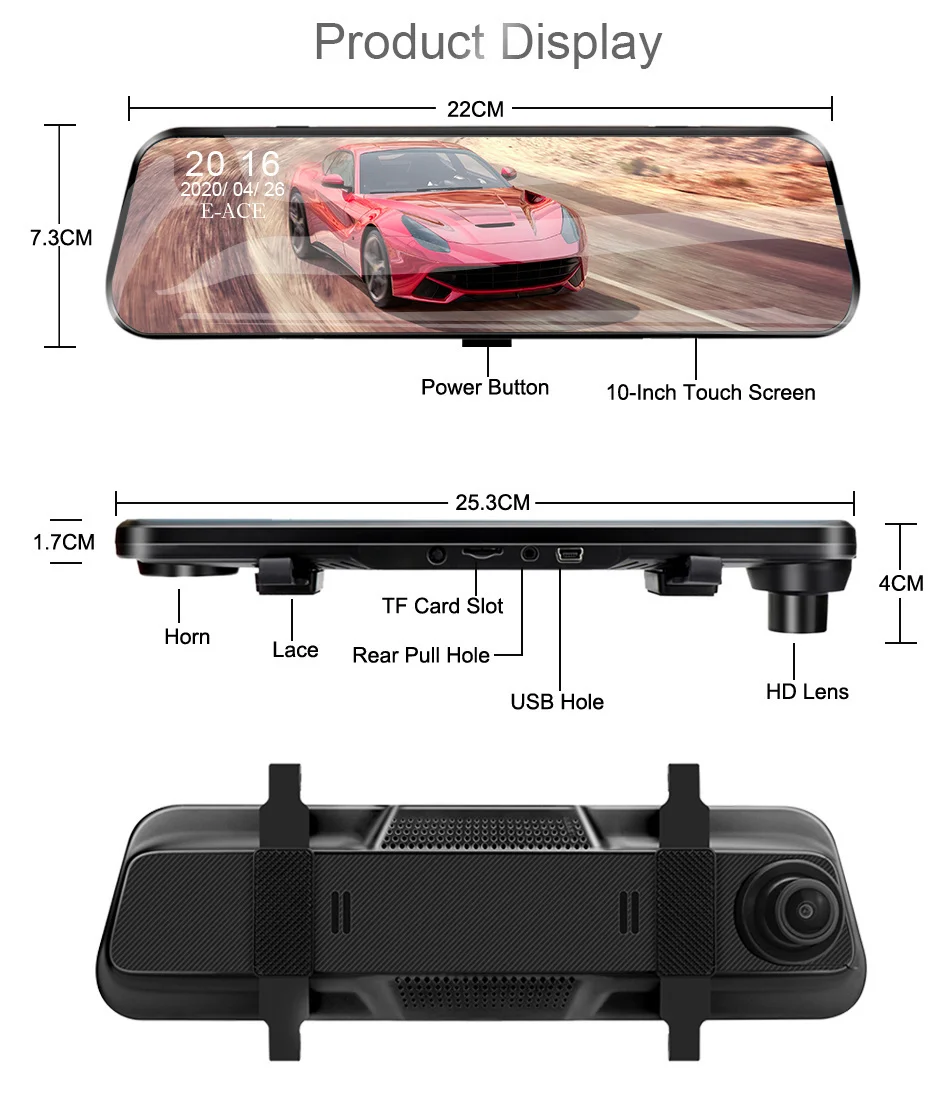

Product Display for A20P

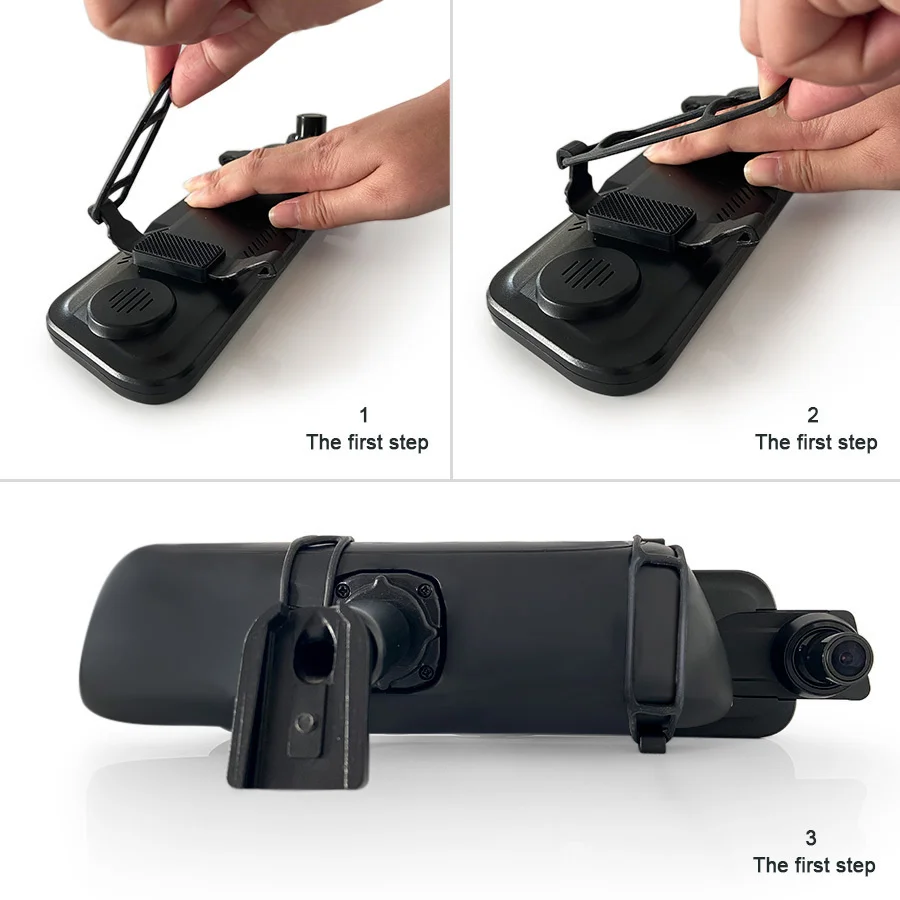

Installation

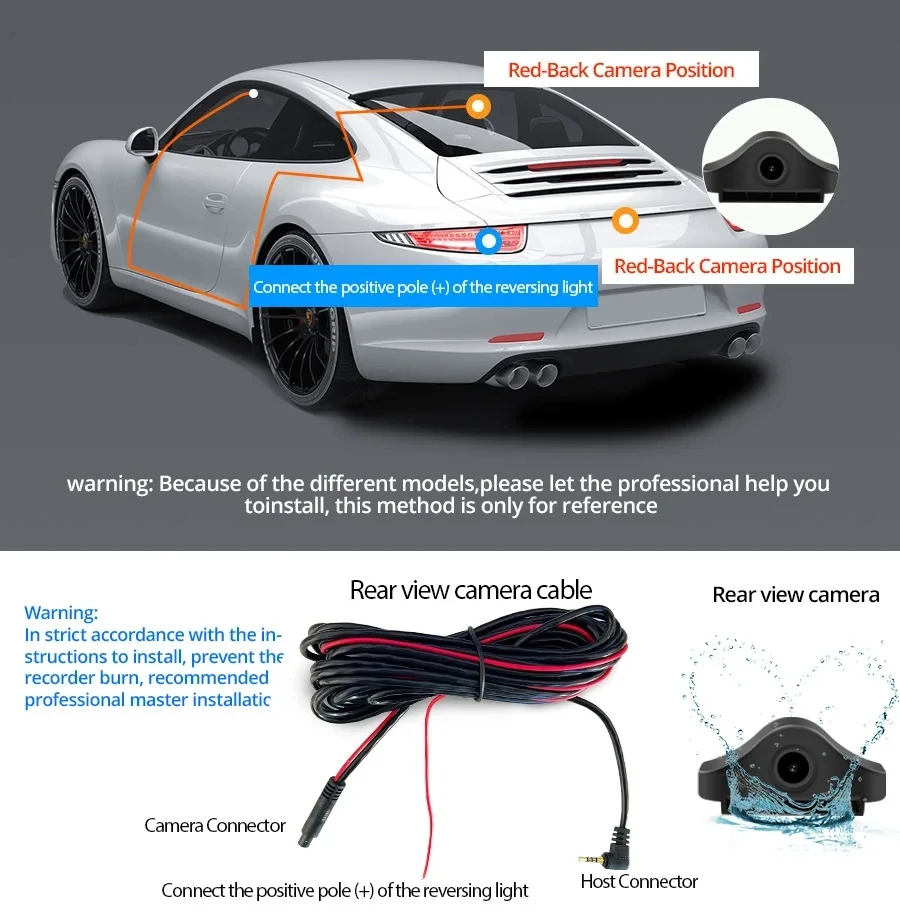

About the Rearview Camera
Please connect the rear camera’s Red cable wire with your car reverse lamp power ‘s Positive pole(+).and then plug the car charger into the cigar lighter to power supply the car dvr.When you get your car in Reverse Gear,the car dvr will automatically switch to the rear camera with parking line.Then the auto reversing function will work.
